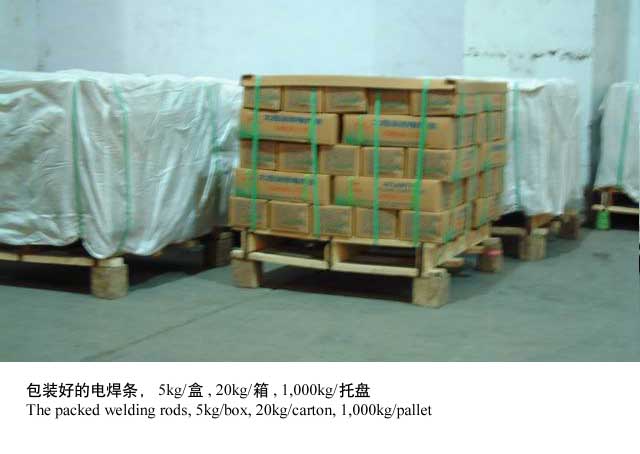

Reference Outside Dimensions of Package (mm)
For Carbon Welding Electrodes
|
Length of Electrodes |
Volume of 5Kgs Paper Box
L x W x H |
Volume of 20Kgs Carton
L x W x H |
Volume of 1,000Kgs Pallet
L x W x H |
|
300 |
230 x 66 x 42 |
350 x 240 x 160 |
980 x 980 x 960 |
|
350 |
370 x 66 x 32 |
400 x 190 x 160 |
990 x 820 x 960 |
|
400 |
420 x 66 x 30 |
450 x 180 x 160 |
930 x 930 x 955 |
For Stainless Steel Welding Electrodes
|
Length of Electrodes |
Volume of 2Kgs Paper Box
L x W x H |
Volume of 20Kgs Carton
L x W x H |
Volume of 1,000Kgs Pallet
L x W x H |
|
300 |
305 x 82 x 62 |
330 x 184 x 140 |
890 x 750 x 890 |
|
350 |
355 x 79 x 54 |
380 x 178 x 125 |
925 x 770 x 800 |
|
400 |
405 x 75 x 50 |
430 x 170 x 115 |
890 x 880 x 750 |
|
450 |
455 x 72 x 47 |
480 x 165 x 110 |
1000 x 830 x 720 |

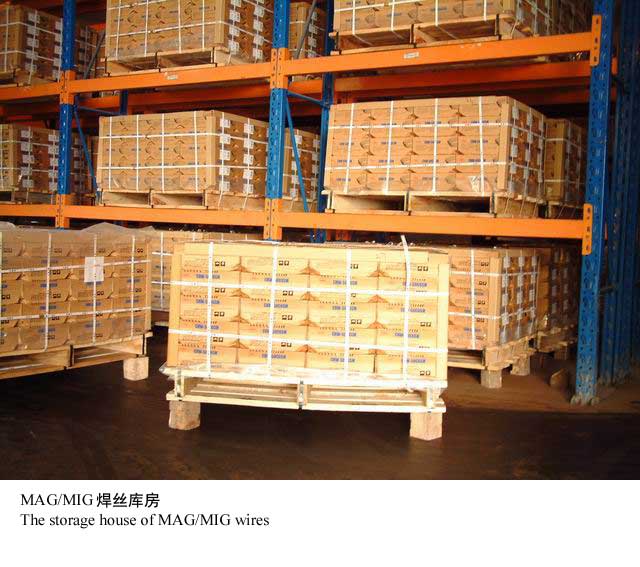

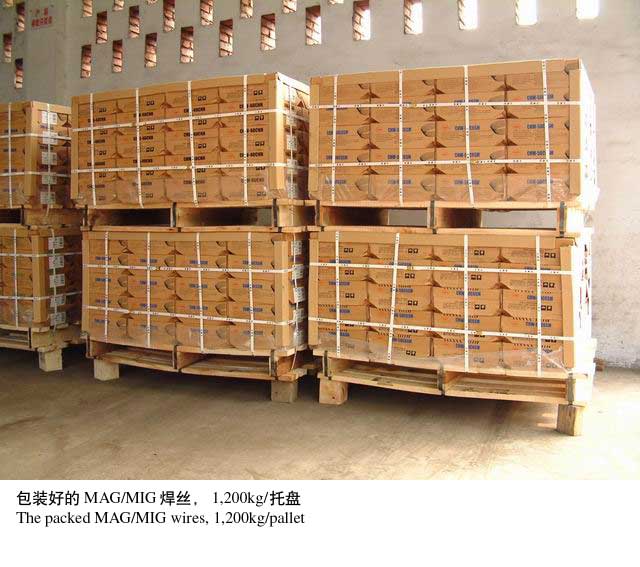

For Spool Packing of MAG/MIG Solid Wires
|
Quantity of Packing |
Volume of Carton (L x W x H) |
Volume of Pallet (L x W x H) |
|
20kgs/Spool |
290 x 290 x 105 |
1,200kgs (1,170 x 880 x 690) |
|
15kgs/Spool |
230 x 230 x 105 |
900kgs (930 x 700 x 690) |
For Kraft Drum Packing of MAG/MIG Solid Wires
|
Quantity (kgs) |
Diameter x High |
|
350 |
670 x 770 |
|
250 |
520 x 670 |
|
100 |
520 x 420 |
